What is VPN configuration? A complete guide for beginners

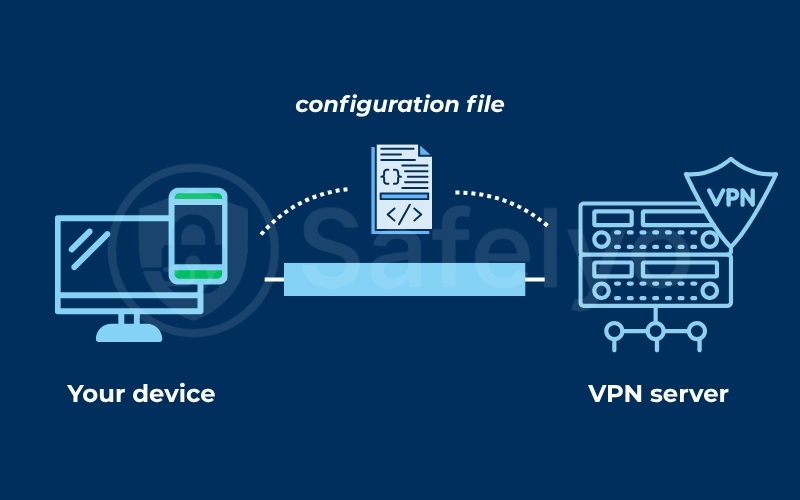

What is VPN configuration? It is a specific set of settings, rules, and credentials your device uses to establish a secure, encrypted connection to a VPN server.

Think of it as a detailed instruction manual that tells your computer or phone exactly how to build a private tunnel over the public internet. While most VPN apps handle this automatically, the configuration file is the engine that makes it work.

1. What is VPN configuration?

A VPN configuration is the technical blueprint for a secure connection. It provides your device (the VPN client) with the specific instructions it needs to communicate properly with a VPN server, ensuring privacy protection.

These instructions answer three essential questions.

• First, they tell your device which server to connect to.
• Second, they define the language (or protocol) to use for the connection.
• Finally, they provide the credentials needed to prove your identity.

It is important to distinguish the configuration from the VPN software itself. The app is the user-friendly interface you see and interact with, while the configuration is the set of background rules that tells the app how to establish its connection.

2. Key components of a VPN configuration

A VPN configuration is the digital blueprint for your secure connection. For your device to build that private, encrypted tunnel, it needs this set of instructions. Every configuration, whether handled by an app or a manual file, is built from several key components that must work together.

2.1. VPN protocols (OpenVPN, WireGuard, IKEv2)

The first component is the VPN protocol. This acts as the specific language, or set of rules, for creating the connection. Your device and the server must agree on this protocol to communicate, much like two people must agree on a common language.

Each protocol has different strengths:

• WireGuard: A modern protocol known for being extremely fast, which is excellent for streaming.
• OpenVPN: An older, highly reliable standard, respected for its ability to get past network blocks.
• IKEv2: Another common choice, valued by mobile users because it can reconnect very quickly if you switch between Wi-Fi and cellular data.

Based on my own testing, this protocol choice visibly affects performance. I usually find that WireGuard is generally considered faster due to its lightweight codebase and efficient cryptographic design. This is reflected in performance tests from multiple VPN providers.

However, I have also found OpenVPN (specifically using its TCP option) to be more reliable when connecting from restrictive public Wi-Fi, like at an airport, which often blocks other protocols.

2.2. Server address and connection details

Next, the configuration must have a server address and connection details. This is the destination for your connection, such as us-east.vpn-provider.com or a specific IP address. Without this, your device simply would not know where to send your traffic.

2.3. Authentication credentials (username, certificates)

It also includes authentication credentials. This is how the VPN server verifies you are a valid user, typically your username and password. In more secure or corporate setups, this might be a digital “certificate file,” a unique file on your device that acts like a cryptographic passport to prove your identity.

2.4. Encryption standards and ciphers

Of course, the core of the configuration involves encryption standards and ciphers. This is the specific algorithm, like AES-256, that scrambles your data and makes it unreadable to outsiders, protecting you from common cyber threats. You almost never need to adjust this, as the provider sets it to ensure strong security.

2.5. Network settings (DNS, kill switch rules)

Finally, a configuration includes network settings. These are extra rules, such as specifying a private DNS server to prevent your Internet Service Provider (ISP) from seeing your browsing requests.

It can also include rules for a kill switch. This is a critical safety feature that blocks all internet traffic if the VPN connection drops, preventing your real IP address from being accidentally exposed.

3. Types of VPN configuration methods

Most people use a VPN configuration every day without ever seeing it. The way these settings are applied to your device falls into two main methods.

3.1. Automatic configuration: How most VPN apps work

The most common method is automatic configuration through a provider’s app. When you download software from a major provider, you are getting a program that already contains all possible configurations for its entire server network.

You simply log in, click “connect” on a server in Japan, and the app does all the work. It finds the right server, selects the best protocol, and uses your credentials to build the tunnel. This is simple, fast, and gives you easy access to other features like a kill switch.

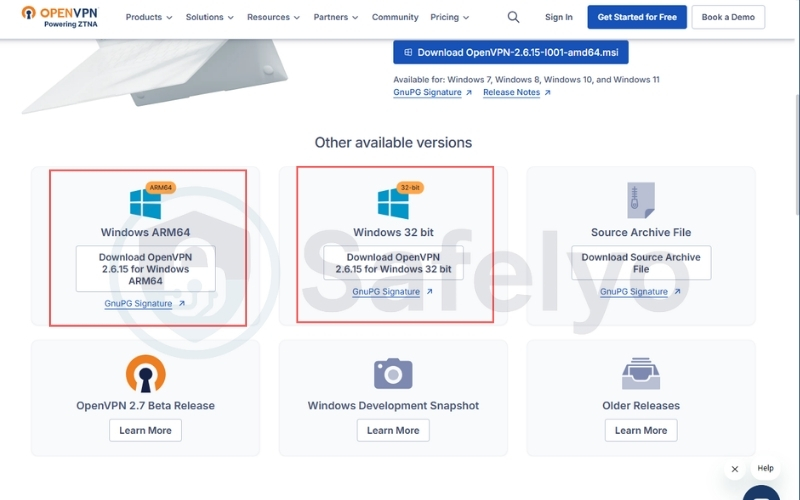

3.2. Manual configuration: Using .ovpn or .conf files

The second method is manual configuration, which often uses .ovpn or .conf files.

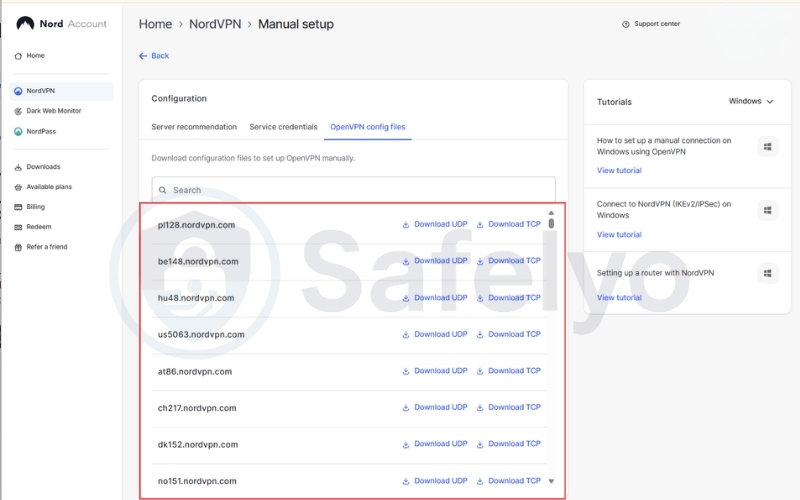

This is the “do-it-yourself” approach. Instead of a dedicated app, you use a generic, third-party software client (like the official OpenVPN or WireGuard apps). You then get the “instructions” by logging into your VPN provider’s website and downloading a configuration file.

This is a simple text file containing all the components from section 2. You import this file into the generic client, and it then knows how to connect.

This manual configuration process is more complex but offers more control.

3.3. When would you need to configure a VPN manually?

Most people will not need this, but it is essential in certain cases. The most common reason is setting up a VPN on a router. Your router cannot run a normal app, so you must upload a manual configuration file to its admin panel. This protects your entire network, including devices like smart TVs. It is also useful on operating systems like Linux or for troubleshooting.

I have often used manual configuration to bypass a network firewall that was blocking the main app. By using a manual OpenVPN file set to run on port 443, the traffic looks like regular secure web traffic and is often allowed through.

4. Consumer vs. business VPN configuration

While the technology is similar, the goal of a VPN configuration is very different for an individual compared to a company.

4.1. Personal use (what most users need)

A personal use VPN, the kind most people buy, is configured to connect you out to the public internet through a secure server. Its purpose is to hide your activity from your ISP, protect you on public Wi-Fi, and let you bypass geographical restrictions to access streaming services or other restricted content.

This is almost always configured automatically by the provider’s app.

4.2. Remote access VPN (for employees)

A remote access VPN is for employees. It has become essential for modern remote work, as its configuration is designed to connect you into your company’s private, internal network.

The goal is to let you securely access internal file servers, printers, and company software from home, just as if you were in the office. Your IT department will provide the custom configuration files or credentials for this.

4.3. Site-to-site VPN (for connecting offices)

Finally, a site-to-site VPN is a highly advanced configuration that users never touch. It creates a permanent, always-on tunnel that connects two entire office networks (e.g., linking the London and New York offices) so they can operate as one single, private network.

5. Common VPN configuration issues and fixes

When your VPN fails to connect, you are likely experiencing connection issues related to a problem with one of its configuration components. Here are the most common issues and how to fix them.

5.1. Incorrect login credentials or certificates

The server is rejecting your authentication. This could be a simple typo in your password, or your account subscription may have expired. Double-check your login details and log into the provider’s website to ensure your account is active.

5.2. Blocked by firewall or antivirus

Your computer’s own security software can mistake the new VPN connection as a threat and block it. This is one of the most frequent problems I see.

A simple way to check is to temporarily disable your firewall and try connecting. If it works, you have found the culprit. You can then go into your firewall settings and add the VPN application to its “exceptions” or “allow list.”

5.3. Outdated software or configuration files

This applies to manual configurations. The .ovpn or .conf file you are using might be old. The provider may have updated its servers or security, making your file obsolete. The fix is to go to your provider’s account page and download a fresh configuration file.

5.4. VPN server is down or unreachable

The problem may not be on your end at all. The specific server you selected might be offline for maintenance or overloaded. This is the easiest fix: just go back to the server list and choose a different server.

5.5. Protocol or port mismatch

Your current network might be blocking the specific protocol or port your VPN is trying to use. This problem is common on restrictive Wi-Fi at schools, hotels, or in certain countries.

To fix this, go into your VPN app’s settings and look for the Protocol option. If it is set to Automatic or WireGuard, try changing it to OpenVPN (TCP). While the TCP protocol is slower, it is much better at getting through network firewalls.

6. FAQs about what is VPN configuration

Here are a few common questions about VPN settings and configuration.

7. Conclusion

So, what is VPN configuration? It is the essential list of instructions that powers your secure connection, whether you see it or not. For most users, it remains a background process automated by a trusted app.

• It includes your server, protocol, and credential settings.
• Most people rely on automatic configuration inside a provider’s app.
• Manual configuration is a powerful tool for advanced setup on devices like routers.

From my experience, most users will never need to manually edit a configuration file. However, understanding what it is helps you diagnose problems much faster when a connection unexpectedly fails.
